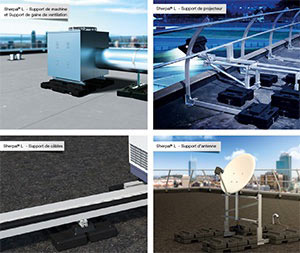

Sherpal® L freestanding advantages

  • Installation without penetrating roof membranes
  • Machine support compliant with French approved installation procedure
  • Equipment raised above any possible standing water
  • No thermal bridging
  • Absorbs acoustic vibrations

Sherpal® L - mechanical services equipment

Advantages of Sherpal L - mechanical services equipment


  • Easy to install
  • Equipment raised above any possible standing water
  • Absorbs acoustic vibrations
  • Mill fi nished stock available
  • Counterwight PVC with 10-year guarantee

Description of the system


Sherpal L - Freestanding is a supporting structure used to install mechanical services equipment on on the surface of a fl at roof without any membrane penetration or direct fi xings.

Sherpal L - Freestanding is designed to support the following items of equipment: Mechanical ventilation, air conditioning units, heat pumps, inverters, satellite dishes or CCTV cameras.

Models


  • Sherpal L - Freestanding model 400
  • Sherpal L - Freestanding model 800
  • Sherpal L - Freestanding model 1000
  • Sherpal L - Freestanding model 1200

Sherpal® L - Freestanding with telescopic rod

Advantages of Sherpal L - Freestanding with telescopic rod


  • 3 models of telescopic rods
  • Installation without penetrating roof membranes
  • No thermal bridging

Description of the system


Sherpal L - Freestanding with telescopic rod is used to support ventilation ducting on fl at roofs.

The height can be adjusted from 245 to 750 mm (fi nished level at the pin) using three models of telescopic rods.

In compliance with French approved installation procedure, the ducting should be placed at a distance of at least 300 mm from the finished roof level.

Telescopic rod models


  • Telescopic rod 245
  • Telescopic rod 345
  • Telescopic rod 545

Sherpal® L - Freestanding cable tray

Advantages of Sherpal® L - Freestanding cable tray


  • Cables are raised above the water level
  • Installation without penetrating roof membranes
  • No thermal bridging

Description of the system


This system raises cable trays on fl at roofs.

Sherpal L - Freestanding cable tray includes the following elements :

  • Cable tray lengths in aluminium (L = 2500 mm, l = 100 mm)
  • Barrilest counterweight (Sherpal L - Freestanding model 400)

Note : at the junction of two cable trays it is imperative to use a Sherpal® Freestanding model 400.

Sherpal® L - Floodlight support

Advantages of Sherpal® L - Floodlight support


  • Safe handling of the floodlight
  • Compliant with Eurocodes and French DTU 43.1
  • Installation without penetrating roof membranes
  • No thermal bridging
  • Compatible with Barrial guardrail

Description of the system


Sherpal L - Floodlight support is a freestanding support for floodlight on the surface of a fl at roof without any membrane penetration or direct fixings.

During maintenance operations, the system allows the floodlight to slide towards the inside of the roof terrace to ensure operator safety.

Using Barrilest counterweight, the roof is protected and rainwater will drain normally.

The system can be integrated with Barrial guardrail for roof security or used independently.

Field of use


Sherpal L - Floodlight support, with 150 kg of counterweight, is compliant with Eurocodes in the following installations :

  • Wind zone 2
  • Building height: 30 m max.

For all other cases, please contact us.

Two operating positions


Two operating positions for this system :
lighting position and maintenance position.

Changing of positions is done by simply sliding the projector towards the roof.
Maintenance operation is thus carried out inside the roof terrace.
The operator works without risk of falling.
* Other dimensions possible , please contact us.

Sherpal® L - Satellite dish

Les avantages de Sherpal® L - Satellite dish


  • Modular (1, 2 or 3 satellite dishes)
  • Easy to install
  • Installation without penetrating roof membranes
  • No thermal bridging

Description of the system


Sherpal L - Satellite dish is an aluminium satellite dish support structure for flat roofs.

Field of use


  • Satellite dish weight : 8 kg max
  • satellite dish diameter : 800 mm max
  • Wind speed : 140km/h max

Models


  • Simple satellite dish
  • Double satellite dishes
  • Triple satellite dishes

Barrilest 12.5 kg counterweight

Advantages of the Barrilest 12.5 kg


  • 10-year guarantee
  • Manufactured from resilient, recycled and recyclable material, it absorbs vibrations
  • Compliant with French approved installation procedure DTU 43.1
  • It protects roof membranes thanks to its rounded forms and low weight
  • It has carry handles and at 12.5 kg promotes safe handling of materials
  • Easy to install
